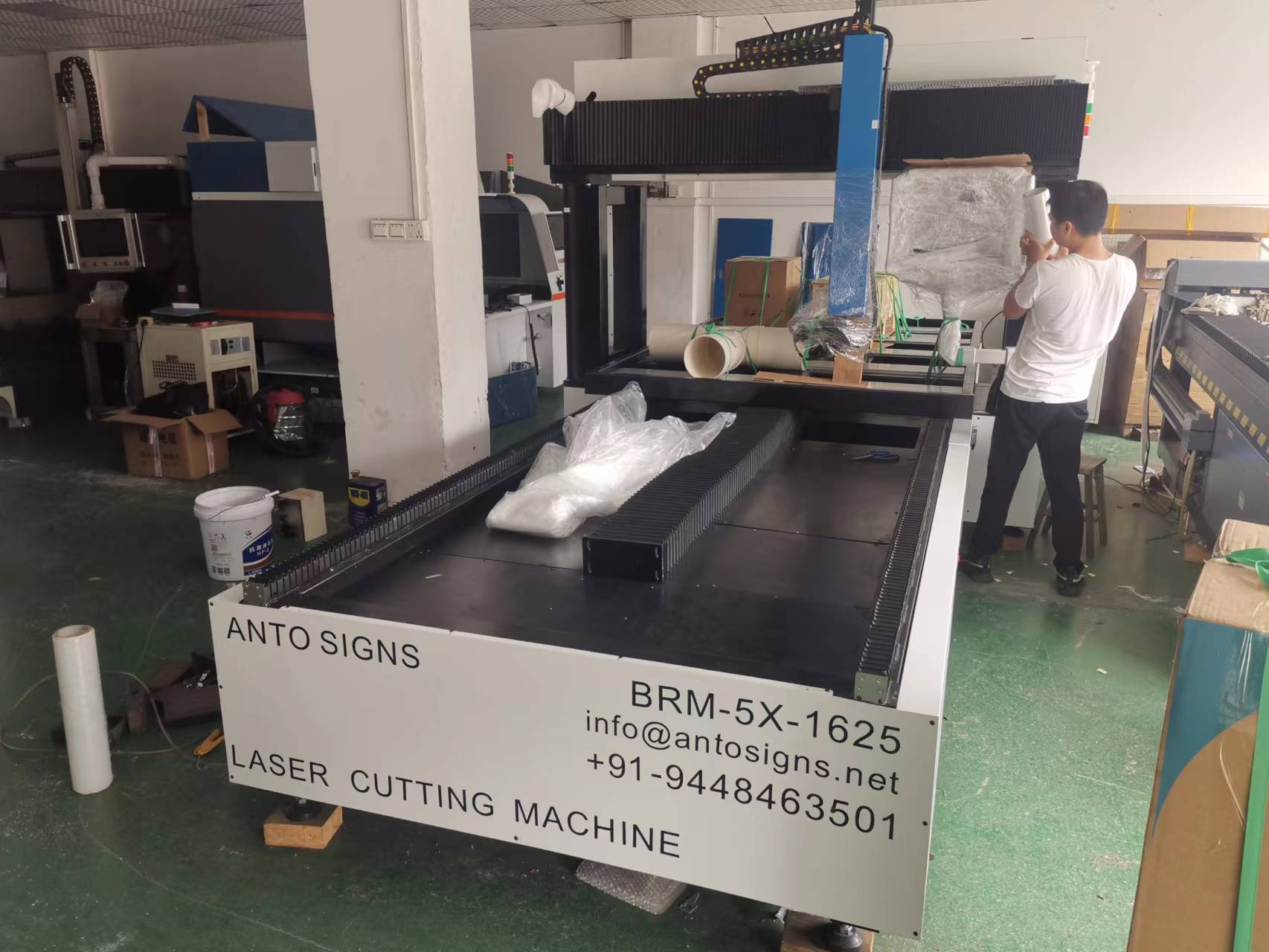

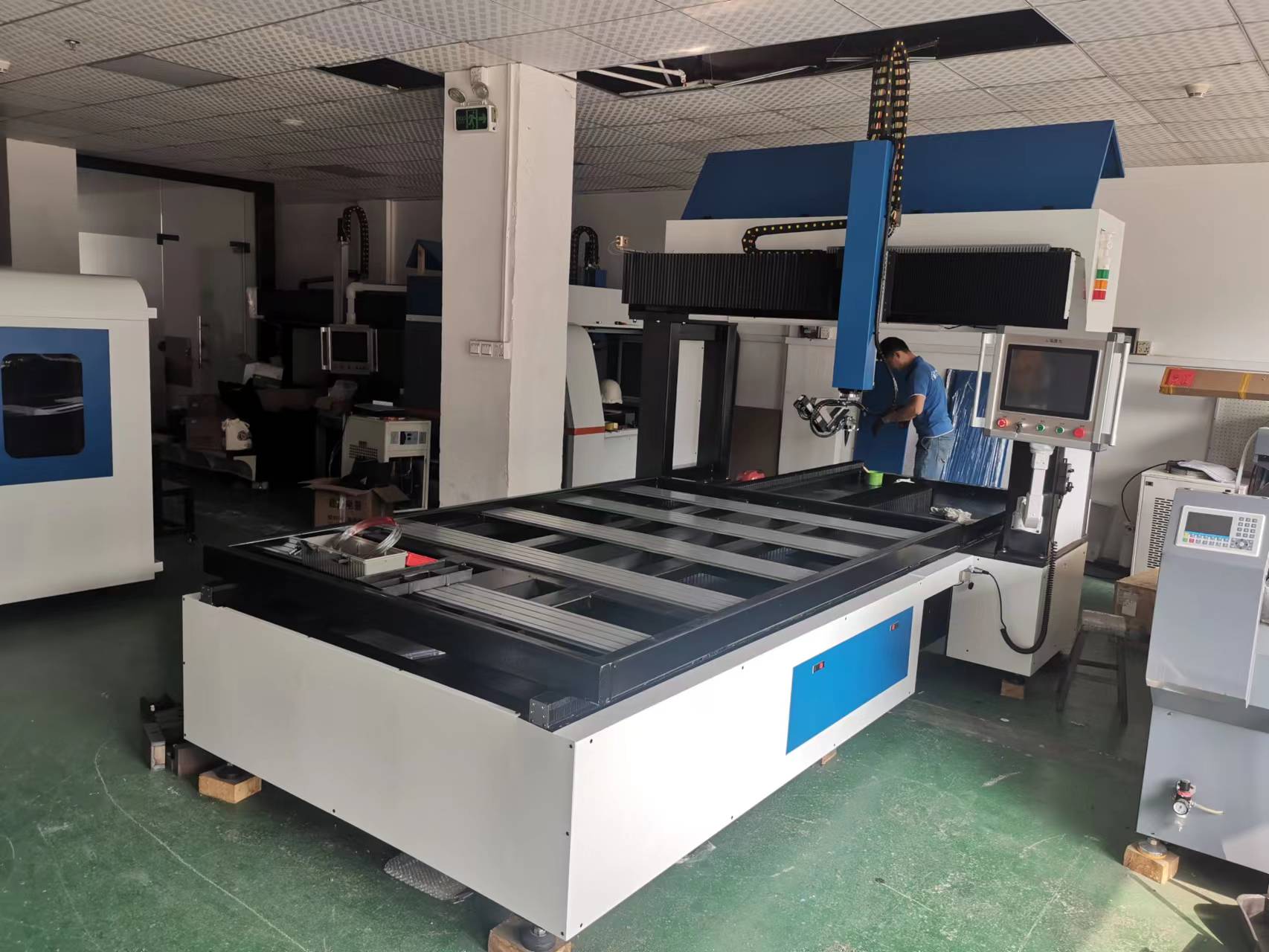

LASER CUTTING MACHINE BRM-5X-1625

Technical parameter

Machine model	LASER CUTTING MACHINE BRM-5X-1625
Size XYZ	16002500600mm
A axis	185 degree
C axis	185 degree
Laser tube	300w China Reci RF metal tube, 10.6um, 5-5000Hz, 2.2< M2≤2.5, beam diameter below φ20, below 2m red,
Water cooling system	Water chiller
Repeat positioning accuracy	±0.03mm
Maximum speed	12m/min
Cutting speed	8m/min
cutting depth	0.2-4mm
cutting width	0.3mm~0.6mm
water chiller	CW6200
control system	taiwan syntec
servo	taiwan syntec: X 1000w, Y 750w, Z 400w, A: 100w. C: 400w;
transmission	XYZ all ballscrew, gantry fixed, one table moving,
table load	30kgs
voltage	3P380V+single phase 220v 50HZ/60Hz
power consumption	3kw
Overall Dimension(lengthwidthheight)	5150mm22802200mm
Total weight	2,170kg
Warranty	2 years for whole machine structure(except spare parts), 2 years for laser source and RF metal tube.
